Gladiator Disruptor System

NIC Instruments has been manufacturing EOD Equipment since the early 1970s, to meet the developing improvised explosive devices (IEDs) threat, and is recognised as a world leader in EOD render safe capability.
As the sophistication of suspect devices has increased over time and in different circumstances, the requirement to reliably render safe IEDs has increased.

Disruptors form a core capability of any team involved in rendering safe IEDs. Disruptors inject a column of water at high power to separate the key components of an IED. The Gladiator Disruptor system is a complete suite of disruptors capable of rendering safe small to large IEDs. Powered by an electrically initiated cartridge, Gladiator can also accept different types of cartridges such as 0.50″ calibre, allowing you to use existing cartridges, or cartridges from other disruptor systems.

Gladiator consists of both recoilless and recoiling disruptors with a highly flexible stand capable of positioning the disruptors in a wide variety of positions. Recoilless disruptors are highly effective when the disruptor must not move during the render safe procedure, or when firing from unmanned ground vehicles such as ZEUS.

Recoiling disruptors are quick and easy to deploy when speed, simplicity and low cost are the driving factors.
NIC Instruments has consistently been the lead company for the design and production of EOD equipment, working in conjunction with British and worldwide Bomb Disposal Experts.
NIC Instruments is registered ISO9001 and uses world class design and manufacturing processes to bring the very best equipment to the end users.

The Gladiator range of recoilless disruptors are capable of rendering safe a range of large to small sized IEDs found in a wide range of suspect devices.

• The recoilless design ensures minimum collateral damage during firing, as the disruptor does not move.
• Gladiator is the first innovative development in recoilless disruptors for over 20 years, as they do not require 2 separate filling operations for the barrel and compensator. It is simply filled from the front of the barrel, and this automatically fills the compensator. This process is significantly faster and easier than all other currently available recoilless disruptors. Due to its simplicity, it is also significantly less prone to operator error during loading.
• Gladiator are also shorter and lighter than all other currently available recoilless disruptors due to the unique design. Gladiator are the only recoilless disruptor where the compensator sits over the barrel, making the whole unit much shorter.
• Gadiator are also the only recoilless disruptors on the market that have an interchangeable breach, allowing different styles of cartridges to be fitted including aluminium cartridges and 0.50” calibre cartridges (optional).
• Gladiator are designed to be fired many thousands of times and are manufactured entirely from stainless steel ensuring full corrosion resistance.
• Gladiator are supplied with a lightweight manual stand, allowing the disruptor to be placed in a wide range of shot positions.
• Three barrel bores are available, 40, 30 & 20mm, optimised to suit the operation.
• Each sized system is supplied in a rigid cacase with a tool kit.
• Designed and manufactured in the UK.

40mm EXCALIBUR
Part No. EOD000815

• The largest and most powerful system, capable of rendering safe large suspect devices such as large suitcases or packages.
• The Excalibur recoilless disruptor is delivered complete with a manual stand, tool kit and rigid waterproof case.
• 40mm Barrel bore.

30mm CUTLASS
Part No. EOD000814

• Standard power disruptor, suitable for most render safe applications such as briefcases, bags and packages.
• The Cutlass recoilless disruptor is delivered complete with a manual stand, tool kit and rigid waterproof case.
• 30mm Barrel bore.

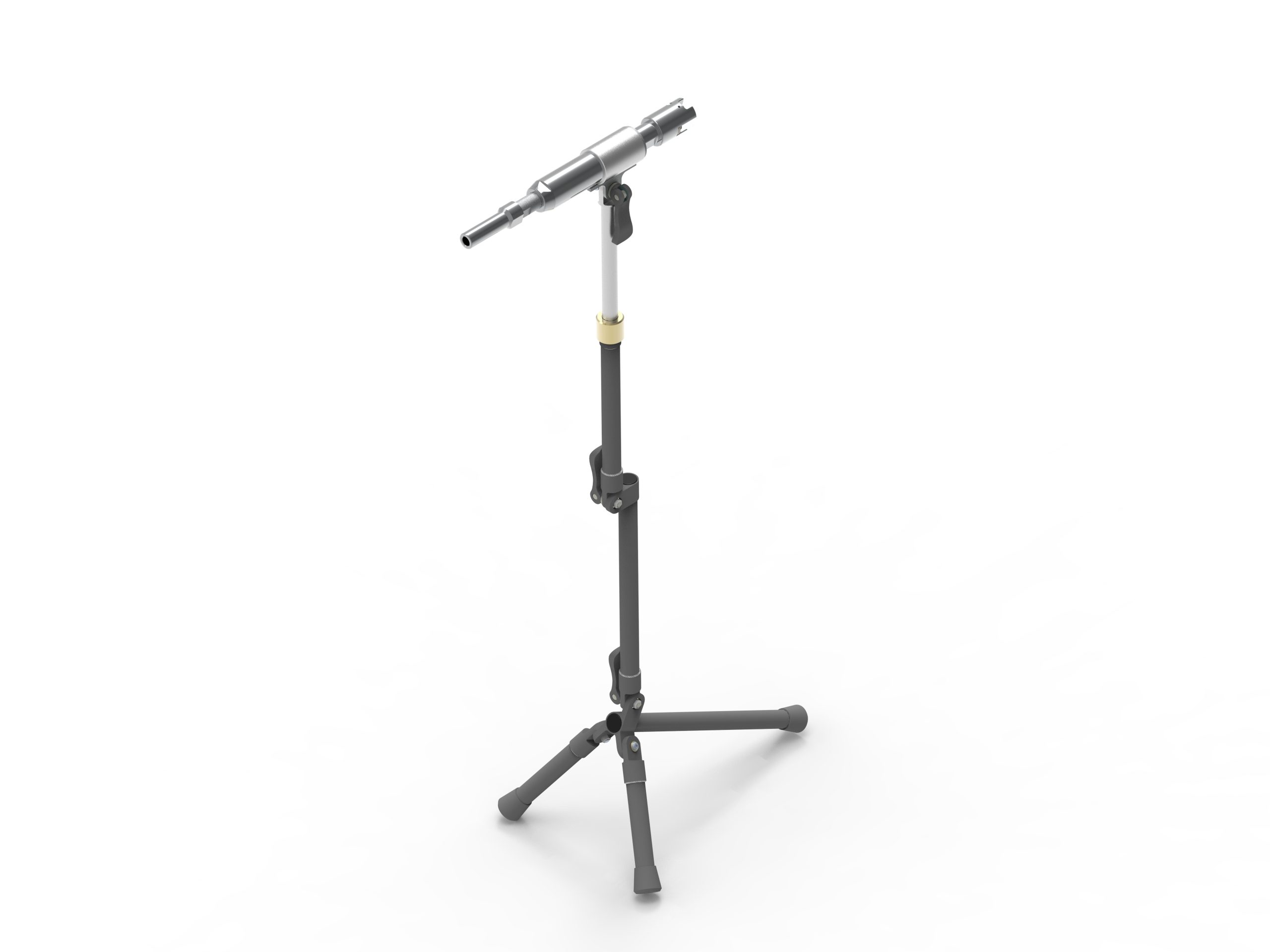

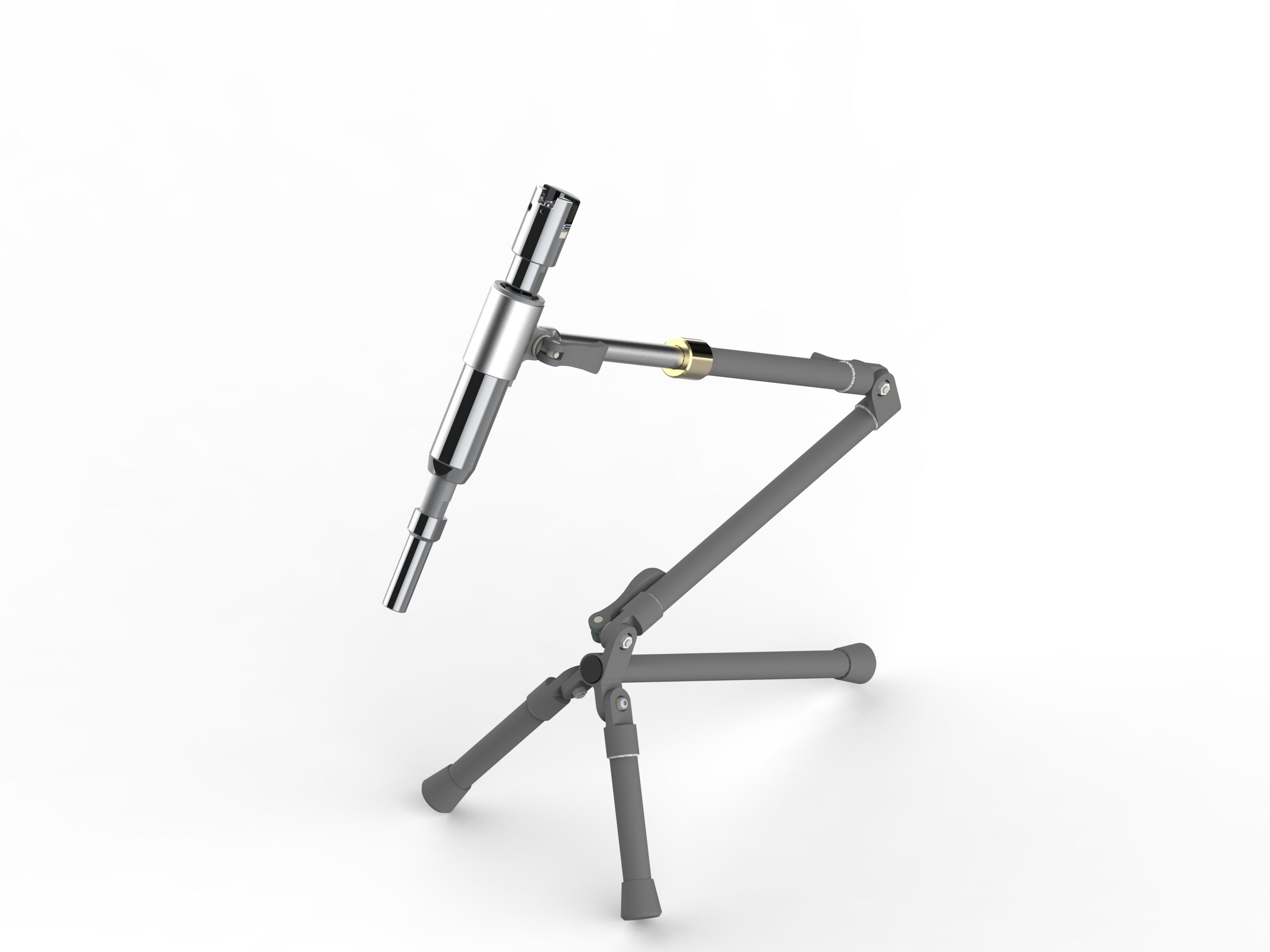

20mm RAPIER
Part No. EOD000813

• A lower powered disruptor, when less power is required to render safe small suspect devices such as small packages
• The Rapier recoilless disruptor is delivered complete with a manual stand, tool kit and rigid waterproof case.
• 20mm Barrel bore.

The Cutlass disruptor, fitted with the de-armer barrel is able to fire a selection of steel slugs, chisels and forks to remove or neutralise the fuzes of air dropped unexploded ordnance and some land service ammunition. It may also be used to neutralise IEDs such as pipe bombs and other metal cased suspect devices.

• The recoilless design ensures minimum collateral damage during firing, as the de-armer does not move.
• Cutlass is also shorter and lighter than all other currently available de-armers due to its unique design. Cutlass is the only de-armer where the compensator sits over the barrel, making the whole unit much shorter.
• Cutlass is also the only recoilless de-armer on the market that has an interchangeable breach, allowing different styles of cartridges to be fitted including aluminium cartridges and 0.50 calibre cartridges (optional).
• Cutlass is designed to be fired many thousands of times and is manufactured entirely from stainless steel ensuring full corrosion resistance.
• Designed and Manufactured in the UK.

Slug Projectile
Part No. EOD000822

Chisel Projectile
Part No. EOD000824

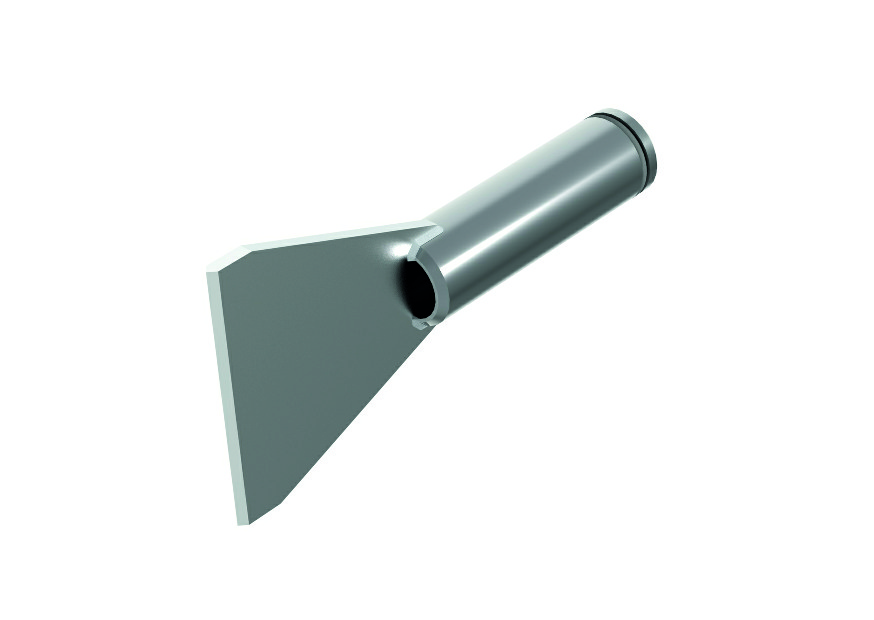

Blade Projectile
Part No. EOD000825

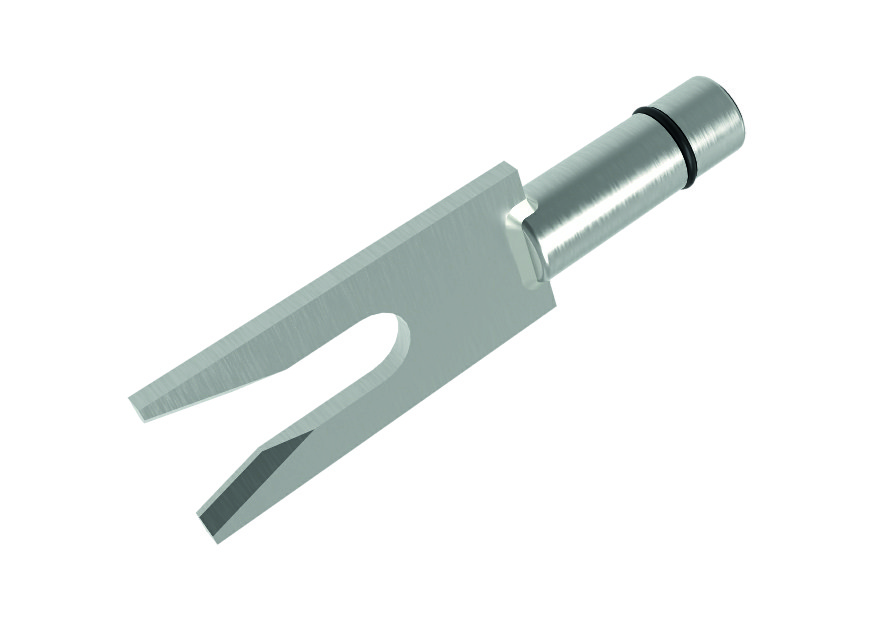

Fork Projectile
Part No. EOD000830

There are times and situations where a basic recoiling disruptor is still the tool of choice. They are low cost, quicker to deploy, despite their disadvantages, and offer a capable solution.

• As per the recoilless range of disruptors, they all have an interchangeable breach, allowing different styles of cartridges to be fitted including aluminium cartridges and 0.50” calibre cartridges (optional).
• They are designed to be fired many thousands of times and are manufactured entirely from stainless steel ensuring full corrosion resistance.
• They are supplied with a lightweight manual stand, allowing the disruptor to be placed in a wide range of shot positions.
• Three barrel bores are available, 40, 30 & 20mm, optimised to suit the operation.
• Each sized system is supplied in a rigid case with a tool kit.
• Designed and manufactured in the UK.

40mm LONGSWORD
Part No. EOD000816

• The largest and most powerful system, capable of rendering safe large suspect devices such as large suitcases or packages.
• The Longsword recoiling disruptor is delivered complete with a manual stand, tool kit and rigid waterproof case.
• 40mm Barrel bore.

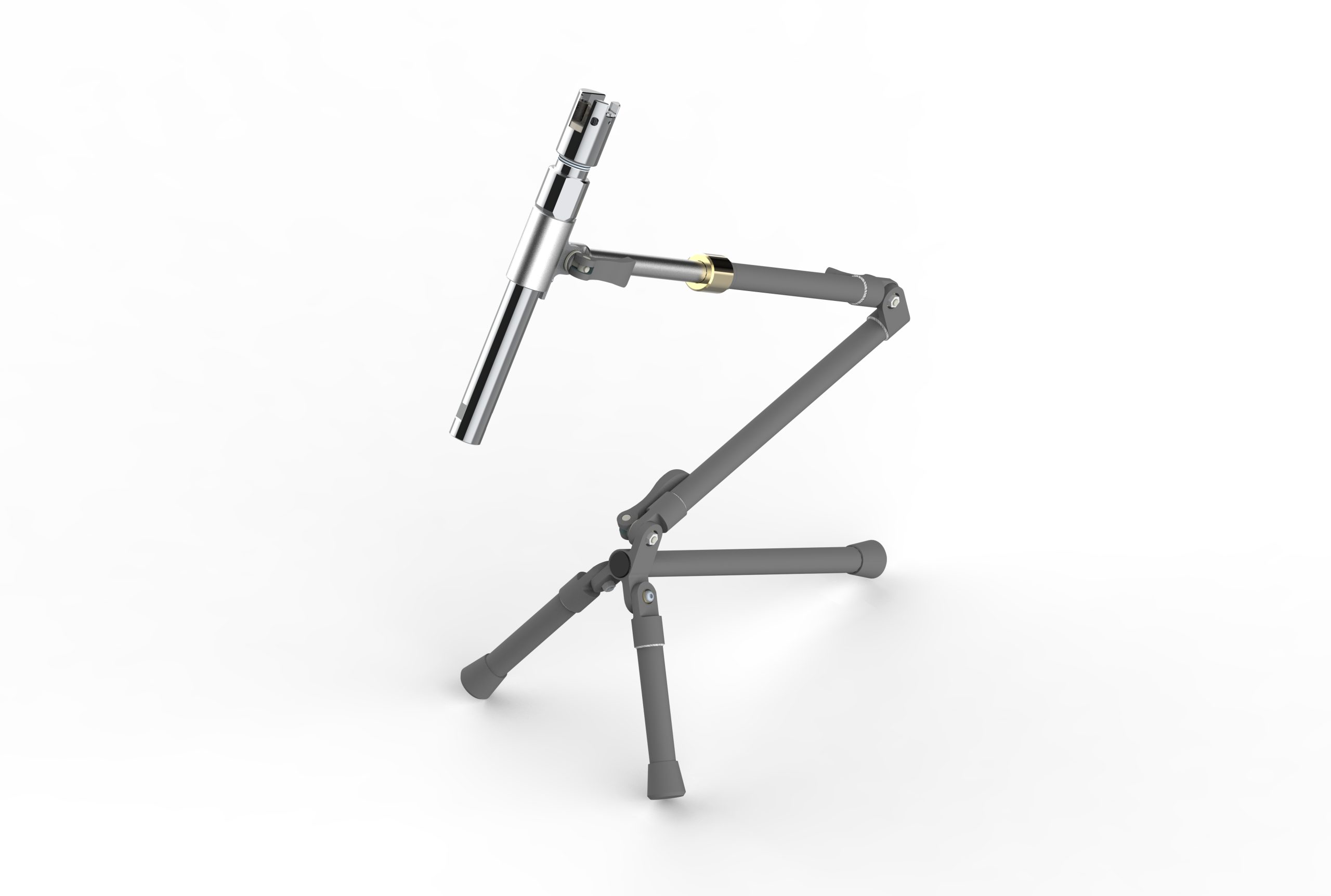

30mm SABRE
Part No. EOD000817

• Standard power disruptor, suitable for most render safe applications such as briefcases, bags and packages.
• The Sabre recoiling disruptor is delivered complete with a manual stand, tool kit and rigid waterproof case.
• 30mm Barrel bore.

20mm KATANA
Part No. EOD000818

• A lower powered disruptor, when less power is required to render safe small suspect devices such as small packages
• The Katana recoiling disruptor is delivered complete with a manual stand, tool kit and rigid waterproof case.
• 20mm Barrel bore.

DISRUPTOR STAND
Part No. EOD000500

• A lightweight multi position stand, suitable for all 3 sizes of disruptors.
• Capable of holding disruptors in a wide range of positions and angles.

TRIDENT
Part No. EOD000819

• A complete disruptor system, which includes all three recoilless disruptors; Excalibur, Cutlass and Rapier in a single kit.
• Trident gives EOD operators the capability to render safe any size of IED
• Trident is delivered complete with 1 manual stand, tool kit and rigid waterproof case.

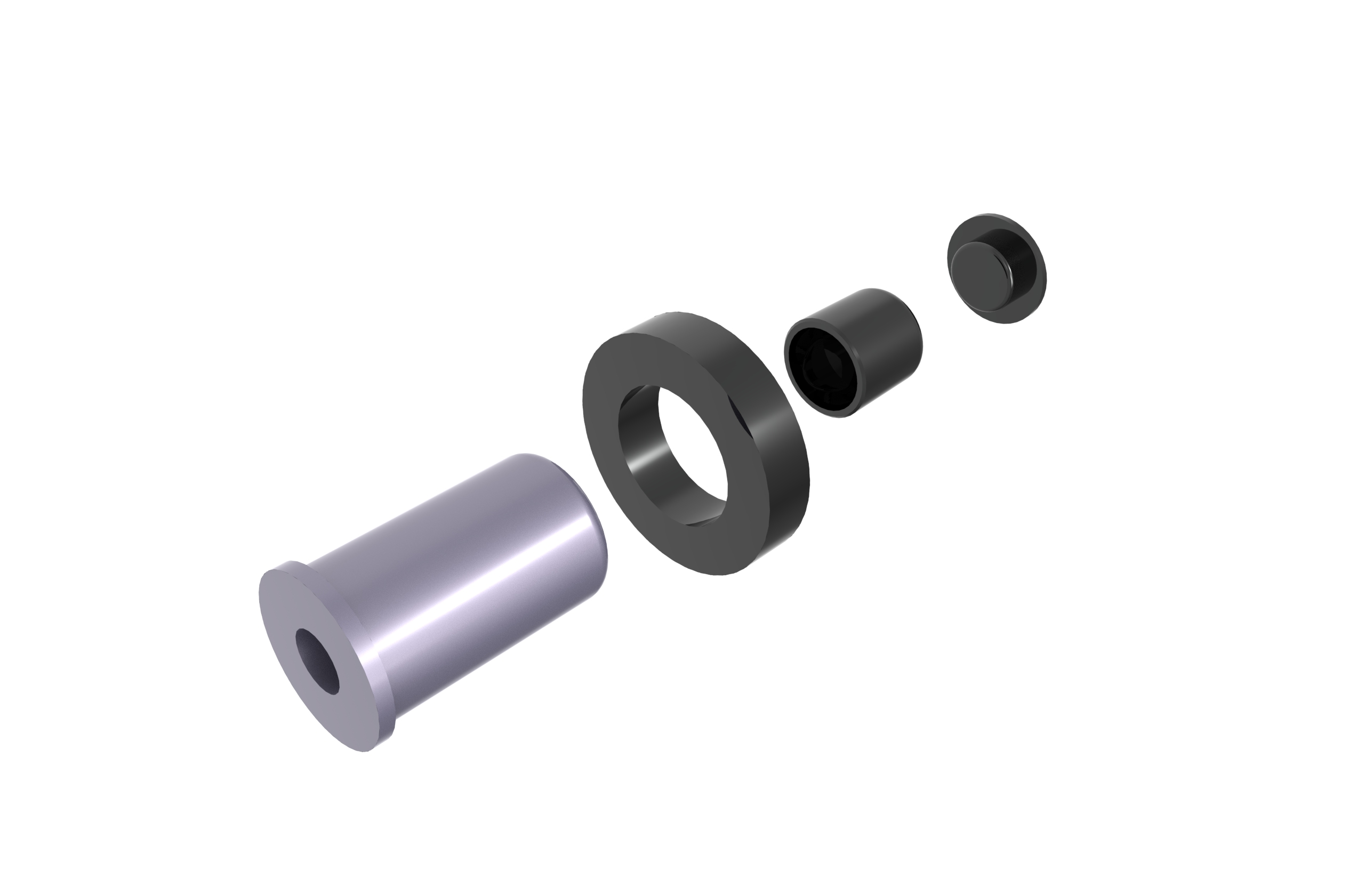

RECOILLESS CONSUMABLES

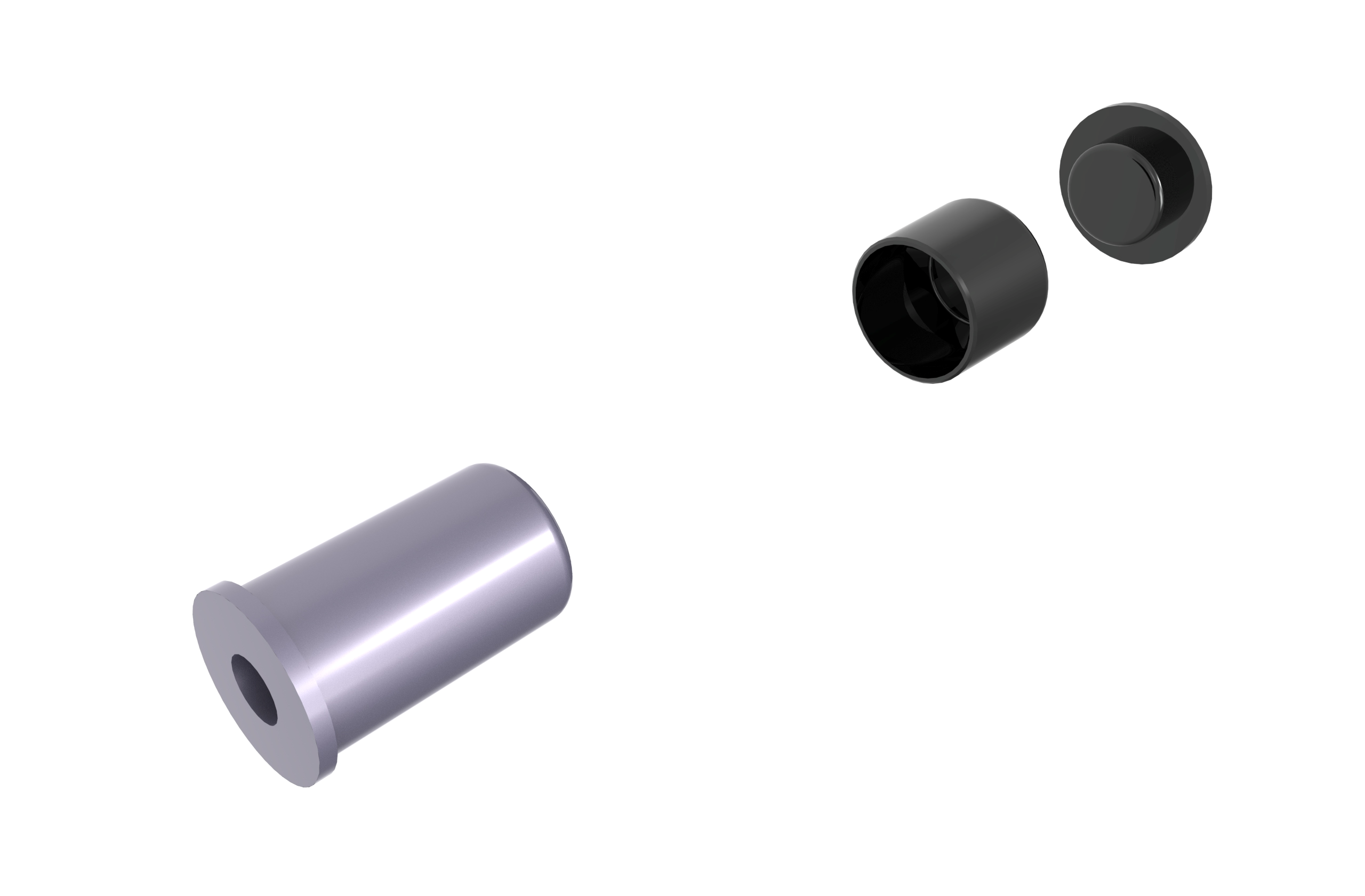

RECOILING CONSUMABLES
